STEEL WIRE ROD
STEEL WIRE ROD

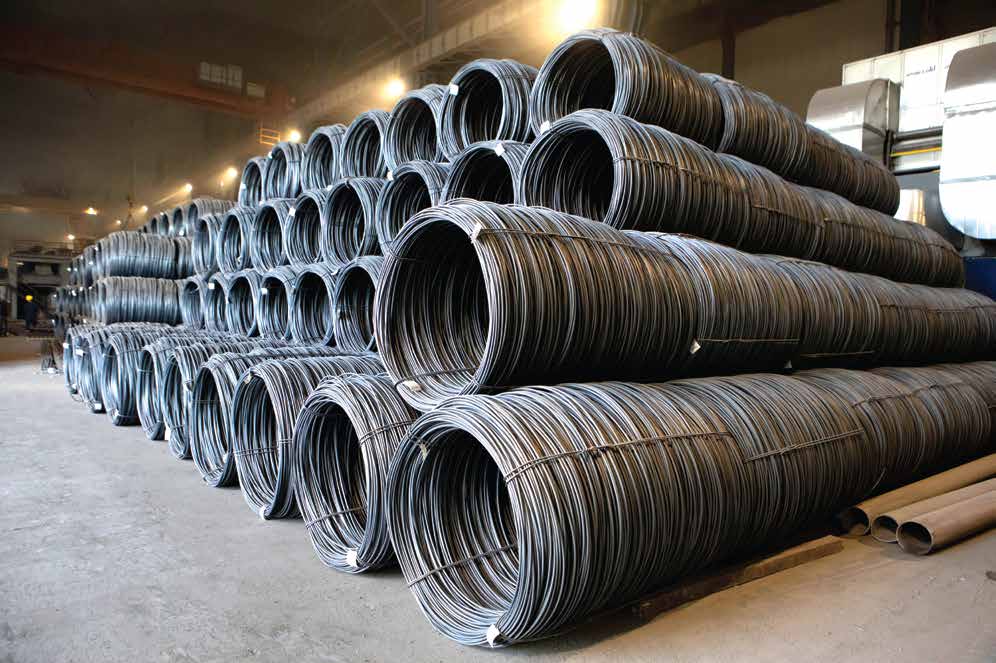

Steel wiire rod is a semi-finished product in the form of a round coil made by hot rolling. It is a product used as a raw material for products such as ssteel wire, nails, bolts, and steel mesh.
Product Features
Steel wire rod is used in areas such as discs and cutters of agricultural machines due to its high flexibility and durability. It is used in the production of parts that must be resistant to impact and abrasion. Steel wire rod is generally used in steel wire production, wire mesh manufacturing, nail and concrete wire, high-strength wire-spring-rope production, screw-nut and bolt production, welding wire and electrode production, and prestressed reinforced concrete wire production.
Our Steel Wire Rod Production line is the longest in Turkey with a length of 120 meters/conveyor cooling platform. In this way, the mechanical properties of the product are more homogeneously produced.

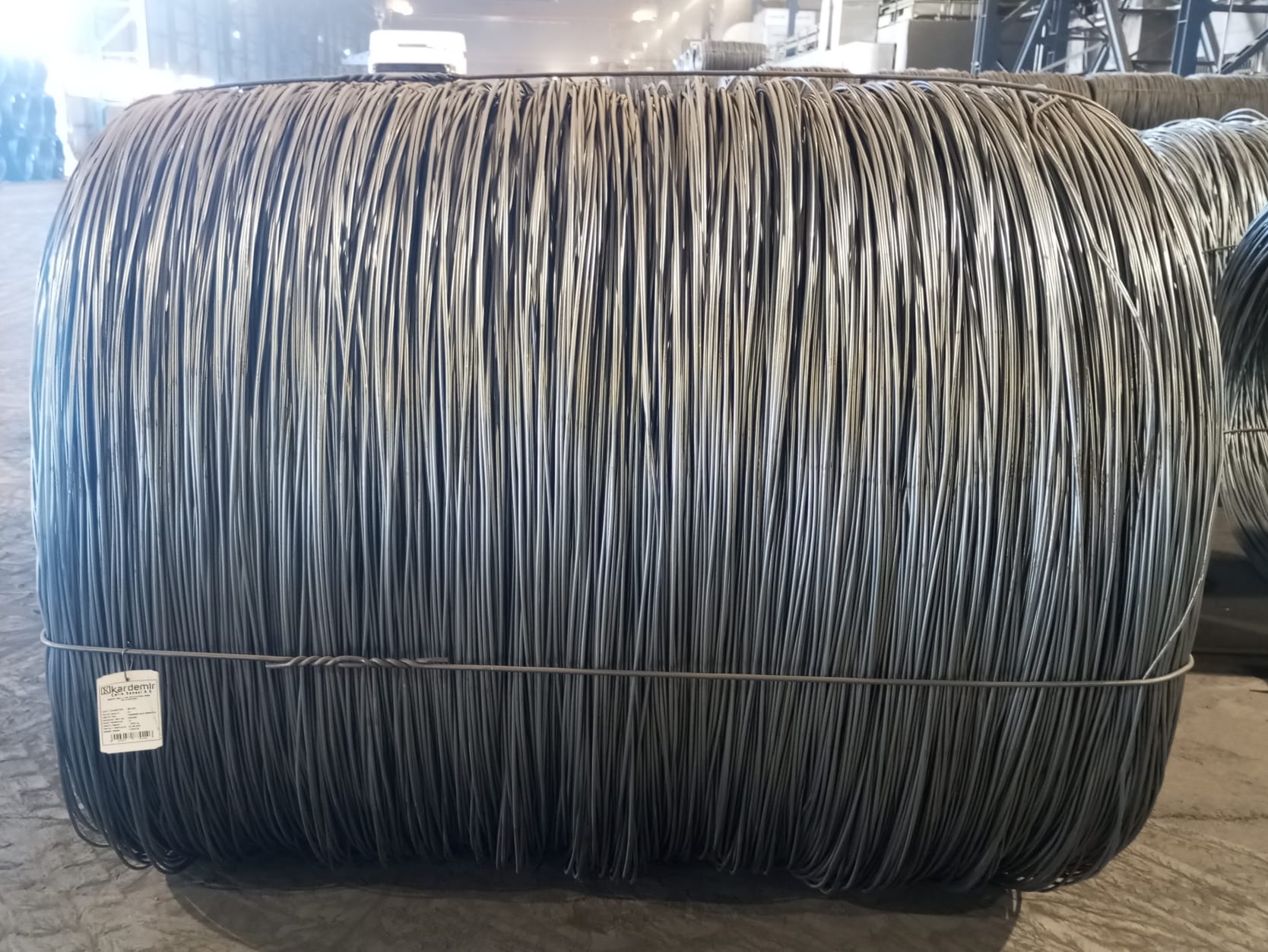

Steel Wire rod is packaged with an automatic band system using the horizontal press method. This packaging makes it easier to use the wire rod by opening it from both ends during use and without mixing it in the package.
Technical specifications
Welding Wire Steels | Bolting and Cold Formable Grades | High Carbon Steel |
|
Standards |
| ||
Sl | 19MnB4 | D45 |
|
S2 | 23MnB4 | D65 |
|
SG2 | D72 |
| |
SG3 | D80 |
| |
SGMo |
| ||
| |||
| |||
Standards | Diameter | |||
EN 16120-2 | DIN 17140-1 | EN 16120-4 | ASTM A510M |
|
| D45-2 (1.0517) | C46D2 (1.1162) | AISI 1045 | 5,5-20 |
C48D (1.0517) |
| C48D2 (1.1164) | AISI 1049 | 5,5-20 |
C50D(1.0586) | D50-2 (1.0586) | C50D2 (1.1171) | AISI 1050 | 5,5-20 |
C52D(1.0588) | D53-2 (1.0588) | C52D2 (1.1202) | AISI 1053 | 5,5-20 |
C56D (1.0518) | D55-2(1.0518) | C56D2 (1.1220) | AISI 1055 | 5,5-20 |
C58D(1.0609) | D58-2(1.0609) | C58D2 (1.1212) | AISI 1059 | 5,5-20 |
C60D (1.0610) | D60-2 (1.0610) | C60D2 (1.1228) | AISI 1060 | 5,5-20 |
C62D (1.0611) | D63-2(1.0611) | C62D2 (1.1222) | AISI 1064 | 5,5-20 |
C66D(1.0612) | D65-2 (1.0612) | C66D2 (1.1236) | AISI 1065 | 5,5-20 |
C68D (1.0613) | D68-2 (1.0613) | C68D2 (1.1232) | AISI 1069 | 5,5-20 |
C70D (1.0615) | D70-2 (1.0615) | C70D2 (1.1251) | AISI 1070 | 5,5-20 |
C80D (1.0622) | D80-2 (1.0622) | C80D2 (1.1255) | AISI 1080 | 5,5-20 |
Conveyor cooling line 120 meters and horizontal packaging | ||||
Standards | Diameter (mm x mm) | |
EN16120-2 | ASTM A 510M | |
C7D | AISI 1006 | 5,5-20 |
C9D | AISI 1008 | 5,5-20 |
C10D | AISI 1010 | 5,5-20 |
C12D | AISI 1012 | 5,5-20 |
C15D | AISI 1015 | 5,5-20 |
C18D | AISI 1017 | 5,5-20 |
C20D | AISI 1020 | 5,5-20 |
C26D | AISI 1025 | 5,5-20 |
C32D | AISI 1030 | 5,5-20 |
C38D | AISI 1038 | 5,5-20 |
C40D | AISI 1040 | 5,5-20 |
| Standards | Diameter (mm) | |||
| DIN8559-1 | EN 14341 | DIN 17145 | AWS Std. | |
| SG1 | G2Si | 10 MnSi5 (1.5112) | ER70S-3 | 5,5 |
| SG2 | G3Si1 | 11 MnSi6 (1.5125) | ER70S-6 | 5,5 |
| SG3 | G4Si1 | 10 MnSi7 (1.5130) | ER70S-6 | 5,5 |
| DIN8557-1 | EN 14171 | DIN 17145 | AWS Std. | |
| S1 | S1 | RRSD10 (1.0351) | EL12 | 5,5-8 |
| S2 | S2 | 11Mn4 (1.0494) | EM12 | 5,5-8 |
| S3 | S3 | 12Mn6 (1.0496) | 5,5-8 | |
| S2Si | S2Si | 11Mn4Si (1.0492) | EM12K | 5,5 |
| S2Mo | S2Mo | 11MnMo45 (1.542) | EA2 | 5,5 |
| DIN8557-1 | EN ISO 21952 | DIN 17145 | AWS Std. | |
| SgMo | G MoSi | 10 MnMo45 (1.5424) | ER 70S-A1(ER80S-G) | 5,5 |
| Conveyor cooling line 120 meters and horizontal packaging | ||||
| STANDARDS | ÇAP (mm) | ||
| EN10263-3 | EN10263-4 | ASTM A29/A29M | |
| 17MnB4 (1.5520) | AISI 10B17 | 5,5-20 | |
| 20MnB4 (1.5525) | AISI 10B20 | 5,5-20 | |
| 27MnB4 (1.5536) | AISI 10B26 | 5,5-20 | |
| 30MnB4 (1.5526) | AISI 10B30 | 5,5-20 | |
| 16MnCr5 (1.7131) | AISI 5115 | 5,5-20 | |
| 20MoCr4 (1.7321) | 5,5-20 | ||
| 20NiCrMo2-2(1.6523) | AISI 8620 | 5,5-20 | |
| 38Cr2 (1.7003) | 5,5-20 | ||
| 34Cr4 (1.7033) | AISI 5135 | 5,5-20 | |
| 41Cr4 (1.7035) | AISI 5140 | 5,5-20 | |
| 25CrMo4 (1.7218) | AISI 4130 | 5,5-20 | |
| 42CrMo4 (1.7225) | AISI 4140 | 5,5-20 | |
| Conveyor cooling line 120 meters and horizontal packaging | |||
